BigQuery Arrays & Structs

Using ARRAY_CONCAT_AGG() in BigQuery

Constantin LunguUpdated 1 min read

Photo by Clem Onojeghuo on Unsplash

If you're working with ARRAYS in BigQuery, you might need to combine two arrays into one at some point in time. That's why I want to showcase an interesting function - ARRAY_CONCAT_AGG.

What does it do? It's an aggregation function, it allows us to stitch together arrays in a particular group, yielding a concatenated array.

๐Ÿ”Ž But watch out for:
- duplicates - it will not filter out duplicates for you
- NULL ARRAY is OK, but a NULL member of an ARRAY is not - you'll get an error โ‰

WITH example_table AS (
  SELECT [1, 2] AS array_column UNION ALL
  SELECT [3, 4] UNION ALL
  SELECT NULL UNION ALL
  SELECT [5, NULL, 6]
)
-- this will raise an ERROR because of the NULL in the last row
SELECT ARRAY_CONCAT_AGG(array_column) AS aggregated_array
FROM example_table

๐Ÿฅ›+ ๐Ÿช You can pair it with:
- ORDER BY to sort the INPUTS to the function (not the elements inside the array)
- LIMIT to keep only a specified number of input arrays

Let's see a practical example. Suppose our input data looks as follows.

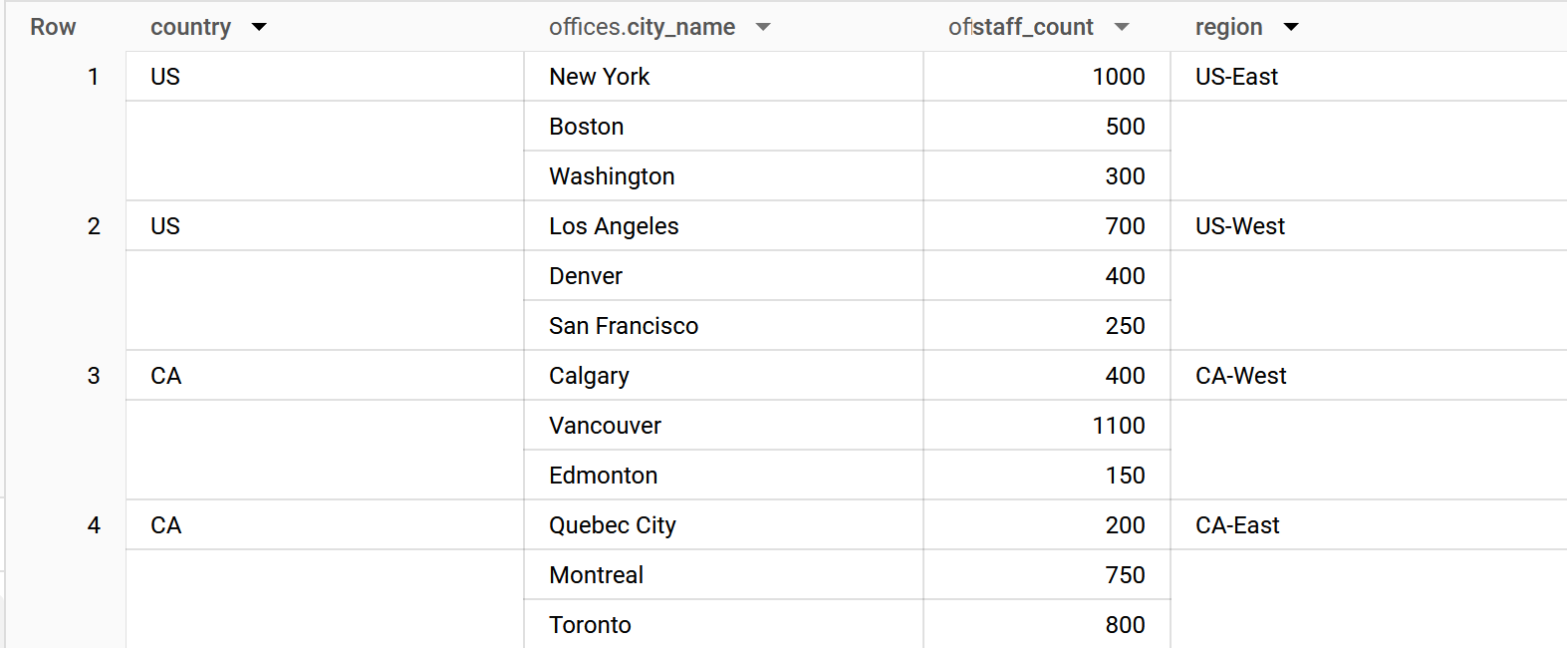

BigQuery console result of the ARRAY_CONCAT_AGG input: four rows, one per region (US-East, US-West, CA-West, CA-East), each with a country and a nested offices array of city_name and staff_count, such as New York 1000, Boston 500 and Washington 300.

We'd like to combine offices by country into a single array (they are currently stored in one array per region).

WITH input_data  AS (
  SELECT 'US' AS country, [STRUCT('New York' AS city_name, 1000 AS staff_count), STRUCT( 'Boston' AS city_name, 500 AS staff_count) , STRUCT( 'Washington' AS city_name, 300 AS staff_count)   ] AS offices, 'US-East' AS region
  UNION ALL
  SELECT 'US' AS country, [STRUCT('Los Angeles' AS city_name, 700 AS staff_count) ,STRUCT('Denver' AS city_name, 400 AS staff_count)  , STRUCT('San Francisco' AS city_name, 250 AS staff_count)  ] AS offices, 'US-West' AS region
  UNION ALL
  SELECT 'CA' AS country,  [STRUCT('Calgary' AS city_name, 400 AS staff_count) ,STRUCT('Vancouver' AS city_name, 1100 AS staff_count)  , STRUCT('Edmonton' AS city_name, 150 AS staff_count)  ] AS offices, 'CA-West' AS region
  UNION ALL
  SELECT 'CA' AS country,  [STRUCT('Quebec City' AS city_name, 200 AS staff_count) ,STRUCT('Montreal' AS city_name, 750 AS staff_count)  , STRUCT('Toronto' AS city_name, 800 AS staff_count)  ] AS offices, 'CA-East' AS region
  )
  SELECT

    country,
    ARRAY_CONCAT_AGG(offices) AS offices

  FROM input_data

  GROUP BY country

Here's what the result would look like:

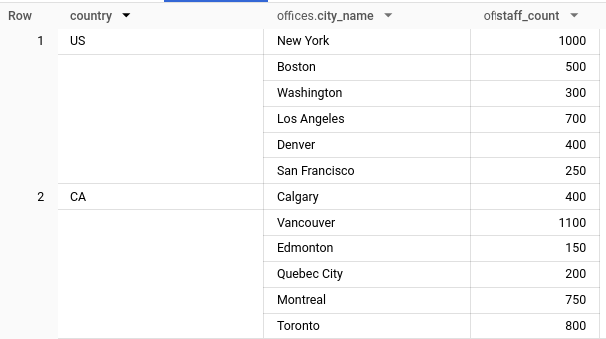

BigQuery console result after ARRAY_CONCAT_AGG(offices) with GROUP BY country: two rows, US with six offices from New York to San Francisco and CA with six from Calgary to Toronto, listed in offices.city_name and offices.staff_count.

Thanks for reading!
