I use STRUCTS in #BigQuery quite a bit. One interesting use case for them is for audit purposes a separate column containing metadata about how the data in that row was sourced.
Sure enough, you don't need a STRUCT for that, but you don't want to crowd your already massive schema with 10 auxiliary columns which would confuse the users.
The scenario
Here's a scenario: say you join data from two different systems, one that provides daily events and one that provides weekly updates. When joining the two together it would be of course useful to know how the resulting data was obtained i.e. what weekly or daily event was used as a base for that attribute.
Creating an audit STRUCT column will help us with that. Let's look at how such an example could look like.
System 1: Daily (but not guaranteed!) data
attribute_date id value event_timestamp event_id
2023-12-18 1 daily-1-B 2023-12-18 23:21:38.000000 UTC ee727a26-2c94-4a72-a321-d1bfb6761937
2023-12-19 1 daily-1-A 2023-12-19 23:41:38.000000 UTC 70385f93-36ef-4ce3-be21-e2206a25eebc
2023-12-20 1 daily-1-F 2023-12-20 22:35:38.000000 UTC ef64e3cb-1943-4c34-b57a-eb9e2a78ffd7
2023-12-22 1 daily-1-F 2023-12-22 20:33:38.000000 UTC 0a484983-1f5e-40a8-8375-6bb16d340904
2023-12-24 1 daily-1-G 2023-12-24 23:31:38.000000 UTC 8d9b0fc8-174b-4ab8-ab99-1c69c03549fe
2023-12-25 1 daily-1-U 2023-12-25 23:41:38.000000 UTC 60f062ba-f314-4001-be0c-5d13289895e1
2023-12-26 1 daily-1-J 2023-12-26 23:50:38.000000 UTC 55d61056-6317-408c-b15b-f0e081505a72
2023-12-27 1 daily-1-K 2023-12-27 21:55:38.000000 UTC d1f5801c-93e6-4734-a7db-6fdd7613db13
2023-12-28 1 daily-1-L 2023-12-28 22:35:38.000000 UTC 704347ff-898c-4cc0-8198-3e522289eee3
2023-12-29 1 daily-1-B 2023-12-29 20:11:38.000000 UTC 3ebe0c05-4ba8-470c-8dce-0af6256e7617
2023-12-18 2 daily-2-B 2023-12-18 23:21:38.000000 UTC 2e03cc56-c5a4-4b8b-9a15-3fbf53536a67
2023-12-19 2 daily-2-C 2023-12-19 23:41:38.000000 UTC fd049e99-ead2-46ce-94de-b44e16ef43f5
2023-12-20 2 daily-2-B 2023-12-20 22:35:38.000000 UTC 4e4a96b1-9c3d-479d-9541-78948a1bfea8
2023-12-22 2 daily-2-Q 2023-12-22 20:33:38.000000 UTC ceaaae84-d335-4e9f-ad66-09a374794e3e
2023-12-23 2 daily-2-H 2023-12-23 22:50:38.000000 UTC 7b2dda93-f80f-40e5-8ac4-40c6f6ada1e2
2023-12-24 2 daily-2-B 2023-12-24 23:31:38.000000 UTC 3e66d7c8-d936-4461-b10a-353968a1eb1d
2023-12-25 2 daily-2-F 2023-12-25 23:41:38.000000 UTC 2332a263-ee03-4bfb-aa2f-53652aafe0f0
2023-12-26 2 daily-2-O 2023-12-26 23:50:38.000000 UTC 1f70c46c-83c4-4632-980d-d04aa980e86a
2023-12-27 2 daily-2-M 2023-12-27 21:55:38.000000 UTC 3a3aa83c-ed93-4b4d-b5e5-88df2b627c01
2023-12-28 2 daily-2-L 2023-12-28 22:35:38.000000 UTC 9ecfa0c3-d34c-43cc-aebf-44fe2fd3a3ac
2023-12-30 2 daily-2-B 2023-12-30 18:21:38.000000 UTC 9c87029f-3e67-488a-bcd7-a8cc4ef304c5
System 2: Weekly data
weekstart id value event_timestamp event_id
2023-12-17 1 weekly-1-A 2023-12-24 23:50:01.000000 UTC e5d6faaa-12f6-4869-8993-5eae0e8399df
2023-12-24 1 weekly-1-B 2023-12-30 22:45:44.000000 UTC 0f28f4d5-0966-47f2-bfc7-ad8aebc42719
2023-12-17 2 weekly-2-A 2023-12-24 23:55:22.000000 UTC 190aa292-9cf1-4dda-9cb4-c713ca003b3b
2023-12-24 2 weekly-2-B 2023-12-30 22:35:11.000000 UTC bc45e078-0bb6-4b8e-8082-488b941b8b01
Building the audit STRUCT column
When joining the two sources together, we can generate the STRUCT audit columns. We'll nest another level of STRUCTs below to keep it clean.
last_daily_attribute AS (
SELECT id, attribute_date, value, event_timestamp, event_id, DATE_TRUNC(attribute_date, WEEK) AS weekstart, FROM daily_attributes
QUALIFY ROW_NUMBER() OVER (PARTITION BY id, DATE_TRUNC(attribute_date, WEEK) ORDER BY attribute_date DESC ) =1
)
SELECT
COALESCE(w.id,d.id) AS id,
COALESCE(w.weekstart, d.weekstart) AS weekstart,
w.value AS weekly_value,
d.value AS daily_value,
STRUCT( STRUCT(d.attribute_date, d.event_timestamp, d.event_id) AS daily_metadata,
STRUCT(w.weekstart, w.event_timestamp, w.event_id) AS weekly_metadata) AS audit_column
FROM last_daily_attribute d
FULL OUTER JOIN weekly_attributes w ON w.id = d.id and w.weekstart = d.weekstart

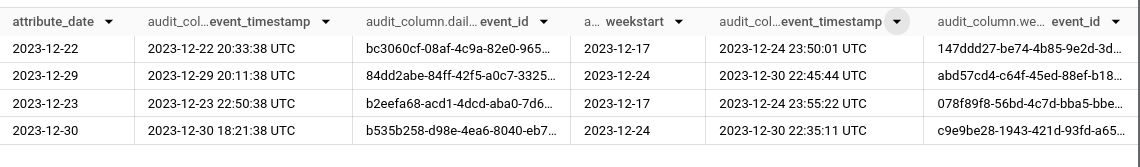

Now, the result set will contain a (STRUCT) column called 'audit_column', which will contain two STRUCTS - one for weekly and one for daily metadata, each with information about the date used, the event timestamp and event id that was used.
This is perhaps even better reflected when looking at the data structure.
{
"id": "1",
"weekstart": "2023-12-17",
"weekly_value": "weekly-1-A",
"daily_value": "daily-1-F",
"audit_column": {
"daily_metadata": {
"attribute_date": "2023-12-22",
"event_timestamp": "2023-12-22 20:33:38.000000 UTC",
"event_id": "bc3060cf-08af-4c9a-82e0-9654a1d1c7bd"
},
"weekly_metadata": {
"weekstart": "2023-12-17",
"event_timestamp": "2023-12-24 23:50:01.000000 UTC",
"event_id": "147ddd27-be74-4b85-9e2d-3d9eb86af48d"
}
}
}
Now, should we investigate why a particular result was obtained, we can just grab the event id from the audit column and investigate in the upstream system.
Thanks for reading and hope this was useful!
